ResEditor, a video bandwidth and resolution calculator: Will it fit? Know in seconds.

A Swiss Army knife for signal path planning: check any resolution against HDMI, DisplayPort and SDI, plan media-over-IP networks, and hand the crew a PDF of the numbers.

  • Works offline · No tracking
  • iOS / iPadOS 18.6+
Download on the App Store
ResEditor on iPhone: resolution, scale and output, with the link bandwidth bar showing the signal fits DisplayPort 1.4, and the scalable resolution grid

What ResEditor calculates

LINK CALCULATOR

Display & broadcast links

Green/red fit indicators with single, dual and quad-link classification.

  • HDMI 1.4, 2.0, 2.1
  • DisplayPort 1.2, 1.4, 2.1 (UHBR13.5)
  • SD-SDI through 12G-SDI
  • 24–480 Hz · 8/10/12-bit · 4:4:4 / 4:2:2 / 4:2:0 · SDR / HDR10 / Dolby Vision
IP CALCULATOR

Media-over-IP planning

Full bandwidth breakdowns across 1/10/25/100 GbE with protocol overhead and ST 2022-7 redundancy.

  • ST 2110-20 / -22 / -30 / -31 / -40
  • IPMX with JPEG XS
  • NDI, NDI|HX, HX2, HX3
  • SRT and RIST with recovery / FEC options
REFERENCE

Specs on hand

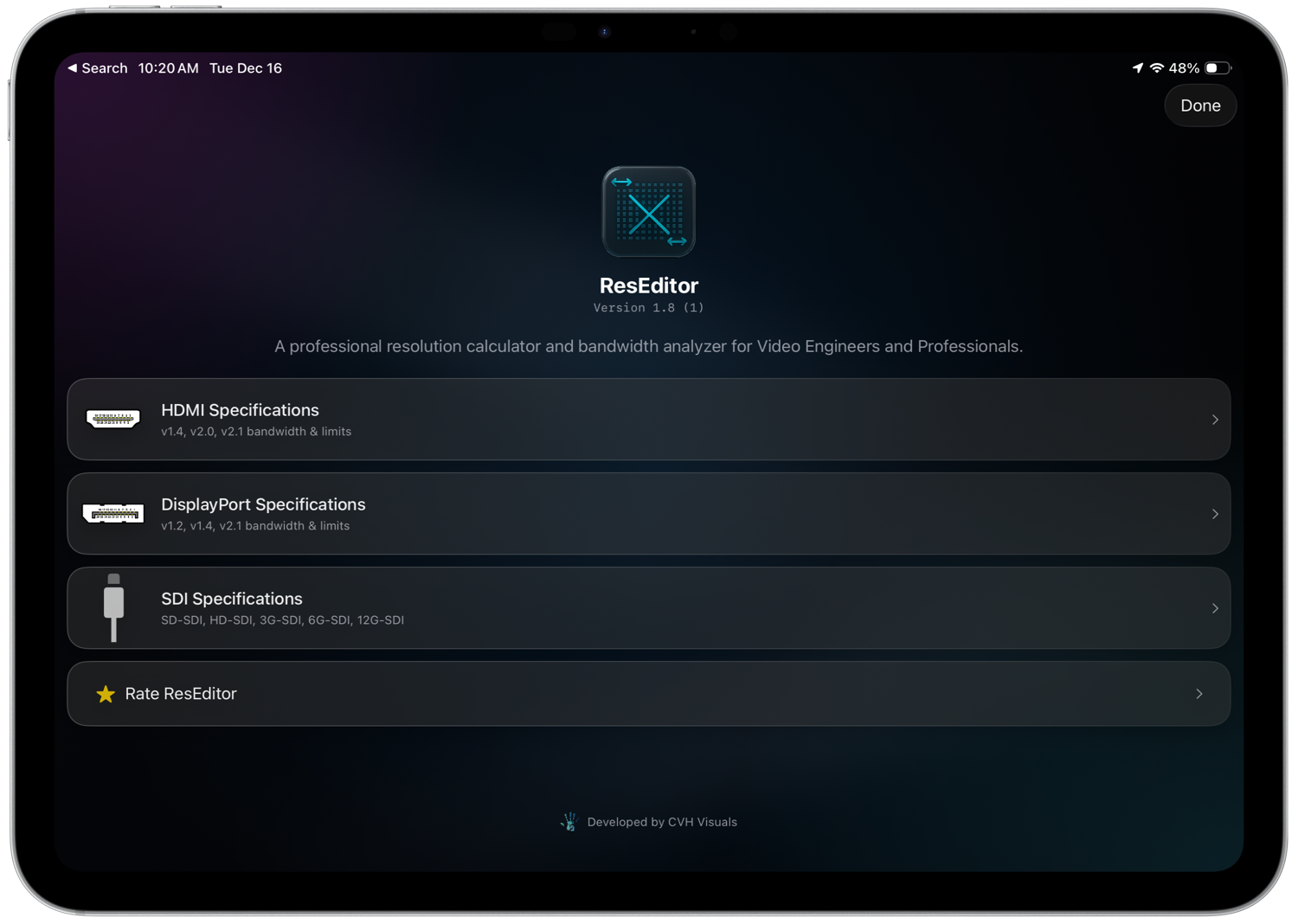

Quick-reference cards for every supported standard.

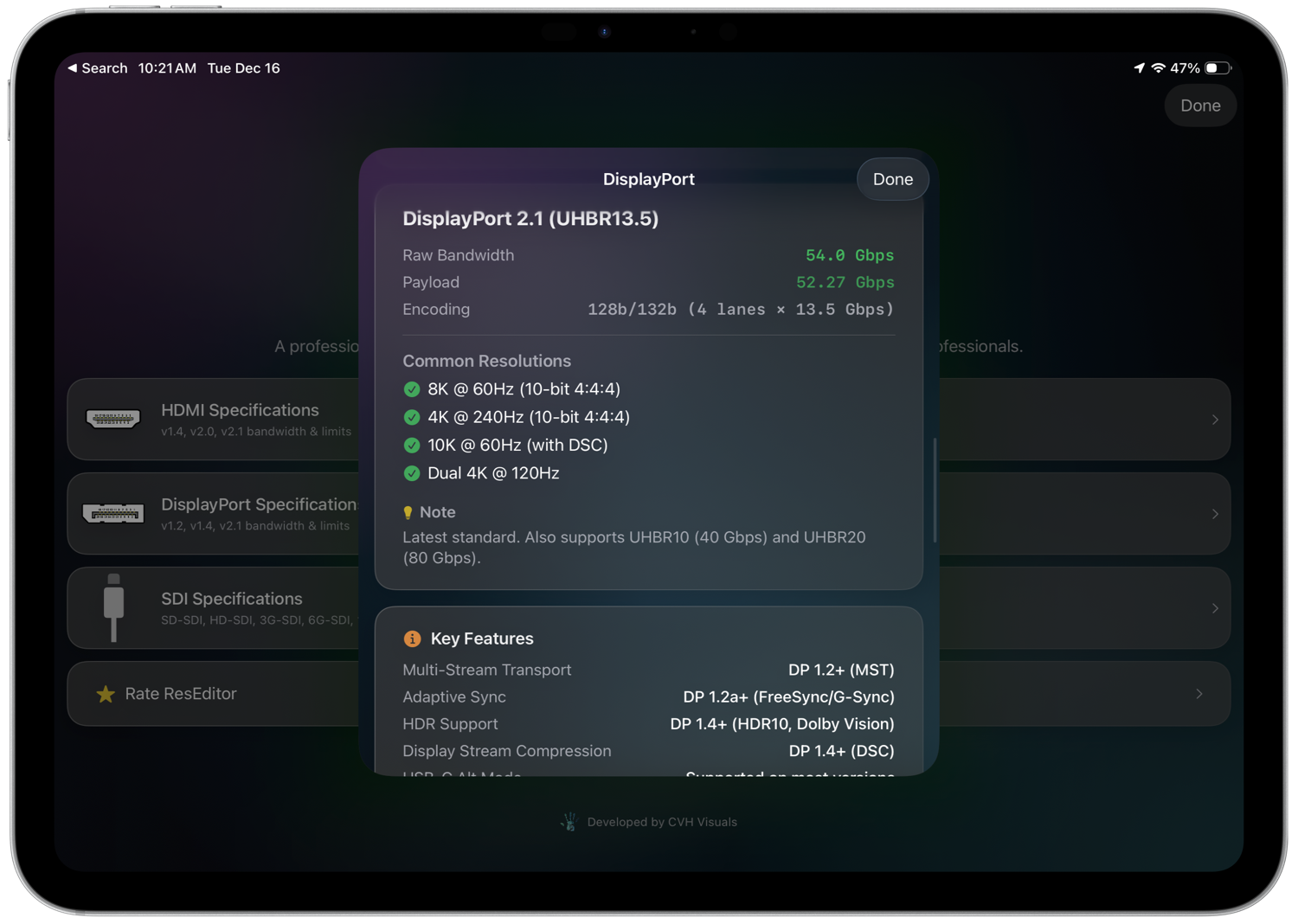

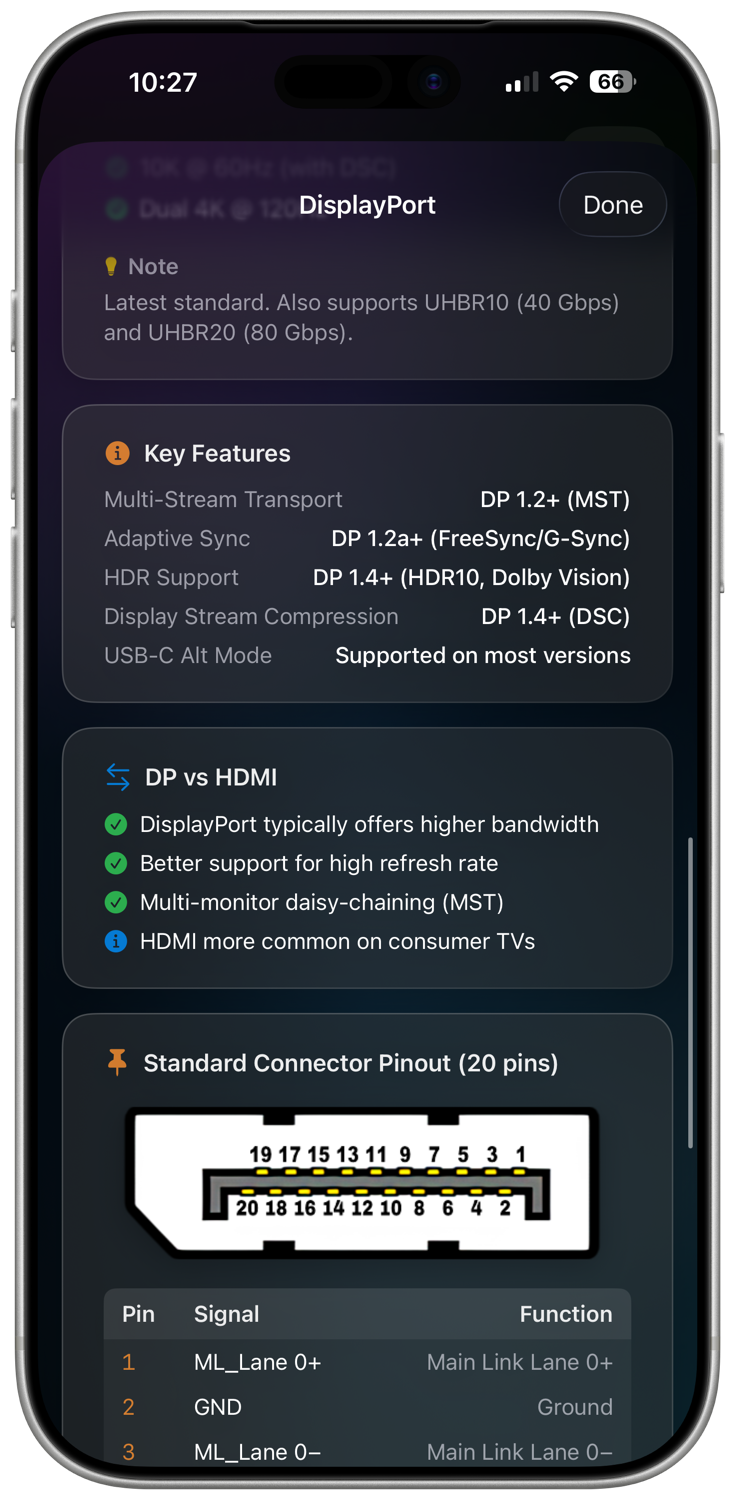

  • HDMI and DisplayPort pinouts and versions
  • MST, DSC and USB-C Alt Mode
  • SDI rates, cable lengths, embedded audio
  • ST 2110 suite and NDI codec tables

iPad · Link calculator

8K over HDMI 2.1? Green means it fits.

  • Fit at a glance — required versus available bandwidth for the interface, refresh rate, bit depth and chroma you pick.
  • Scale and divisibility — browse resolutions from 30% to 190%, filtered by ×8 / ×16 for GPU and encoder compatibility.

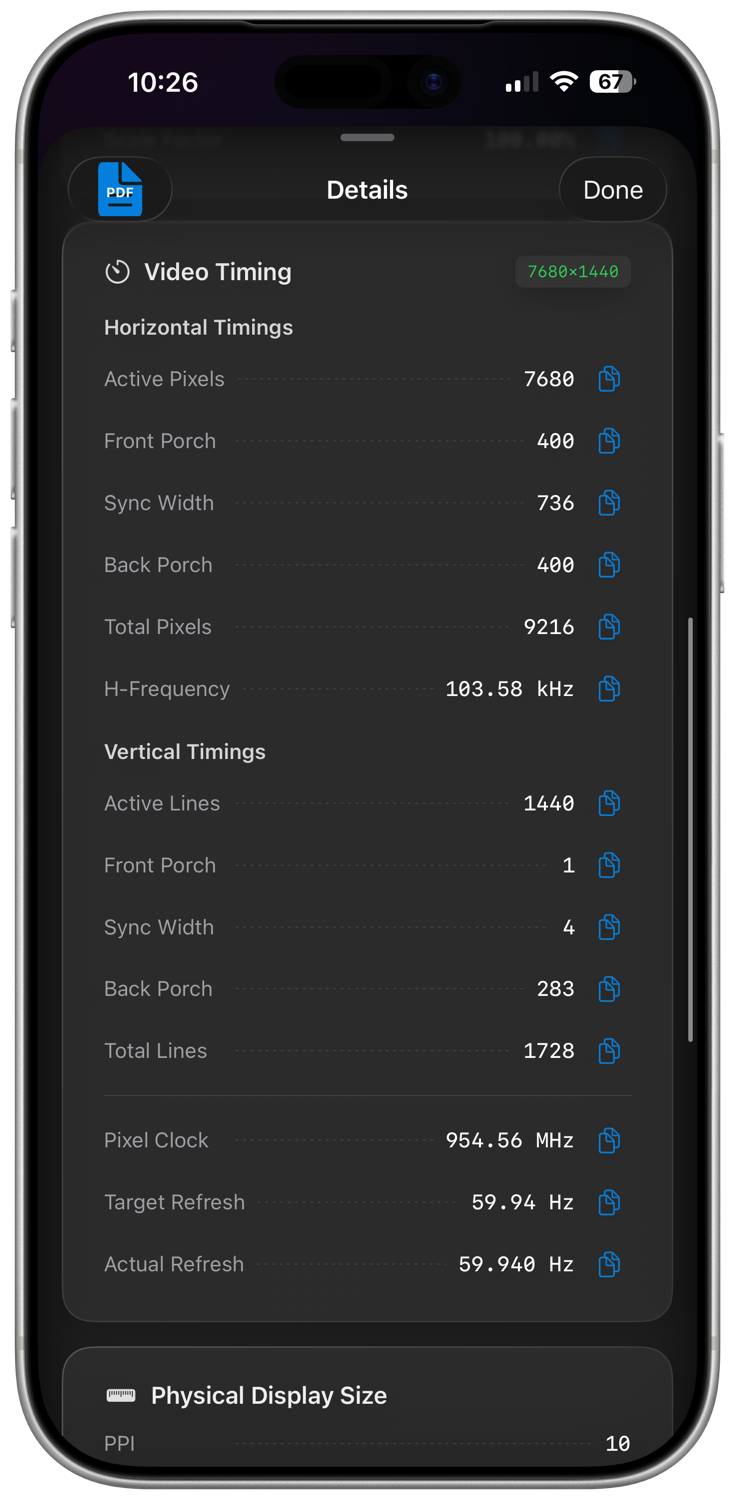

  • Timing breakdowns — pixel clock, blanking, porches and sync for any custom resolution.
  • Physical size — PPI-based display dimensions.

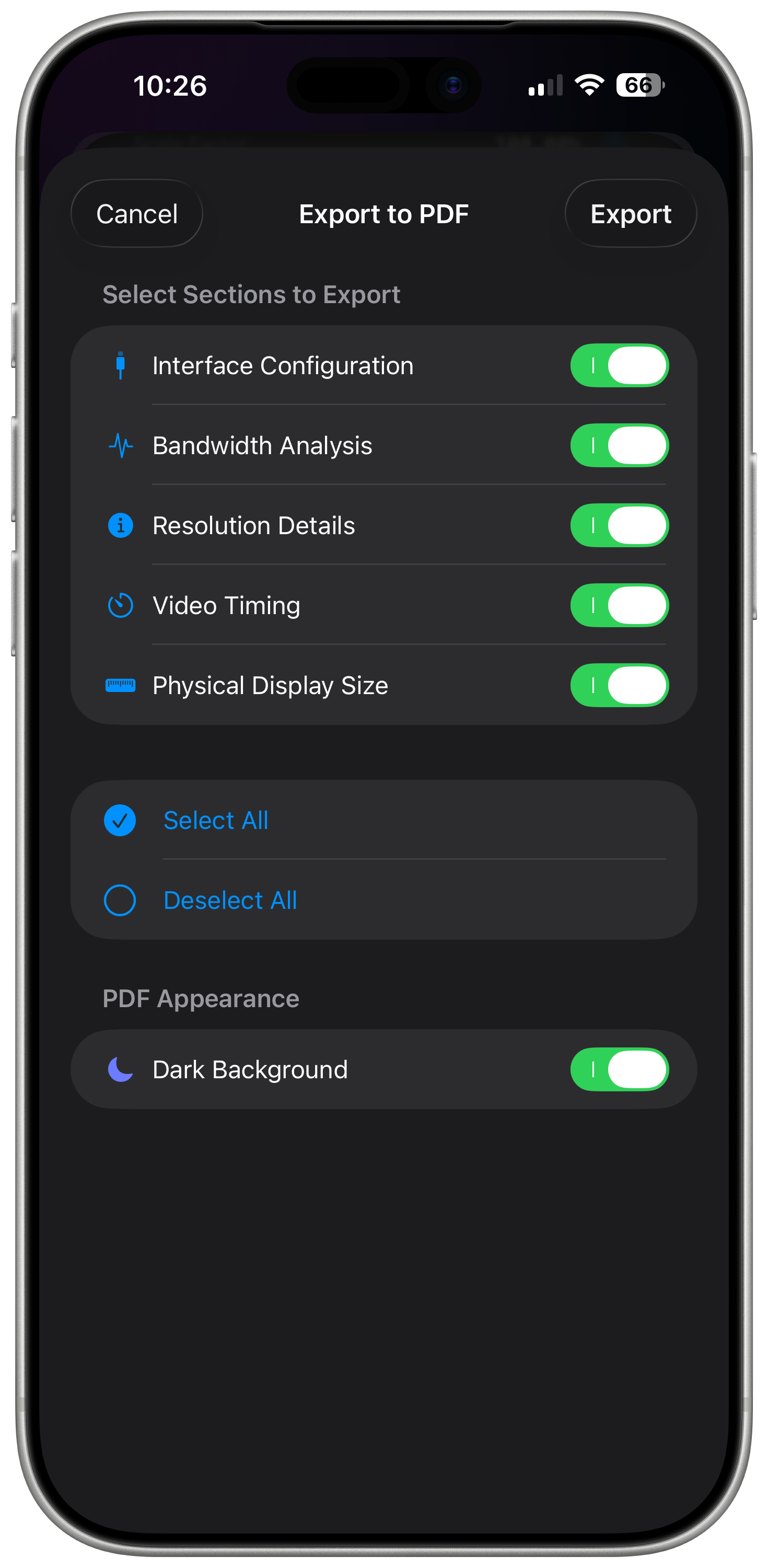

  • PDF export — pick the sections, send it to the crew. Copy values to your Mac with Handoff.
ResEditor on iPad Pro: an 8K 7680×4320 signal over HDMI 2.1 FRL with the bandwidth bar and the scalable resolution grid

Built for

Broadcast engineers, integrators, calibrators and encoder nerds.

ResEditor interface picker listing HDMI 1.4 through DisplayPort 2.1 UHBR13.5 ResEditor DisplayPort reference with pinout ResEditor video timing details ResEditor export to PDF options

Dark theme for control roomsNo data collection

Answers before the truck is unloaded.
